PT.MALMASS MITRA TEKNIK PROJECT

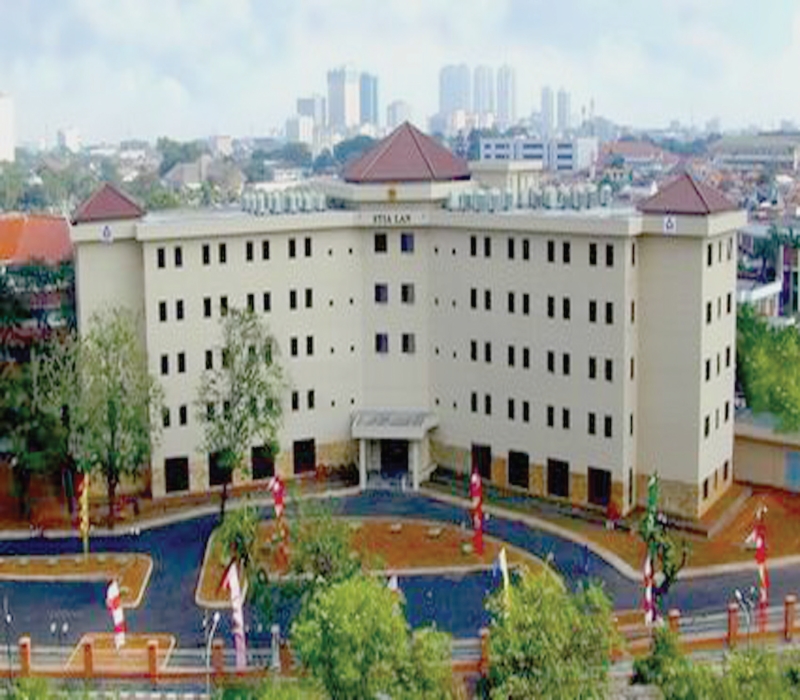

STIA LAN

Location: Jalan Adminitrasi – Pejompongan, Jakarta

PROJECT DATA:
Owner: STIA LAN
Architect: PT. Arsi Wastuadi
Building area: ± 8.800 m²
Total Building: 1 Tower
Total Floor: 5 Storey
Function Building: Campus STIA LAN
Year: 2001

Lift/Elevator System: 2 Unit Lift Passengers, 1 Unit Lift Service

Electrical System:
- Electrical Load; PLN 1110 kVA (Source; PLN & Genset),
- Transformers Oil type, 1 x 1.000 kVA, 20 kV – 380 Volt
- Diesel Generator Set, 1 x 630 kVA, Prime power

MEP SYSTEM:
ACMV System:
- AC Split Duct and AC Split Wall Mounted system and
- Mechanical Ventilation System

Plumbing System:
- Clean water, Waste water, Ventilation and Rain water, etc
- Ground Water Tank (GWT) cap.330 m³ (Source; PDAM and Deepwell)
- Top Reservoir 2 x 10 m³,
- STP cap.60 m³/day, Aeration/bio system

Fire Fighting System:
- Fire Hydrant, Sprinkler System and Extinguisher
- Electric Hydrant Pump (EHP) 500 us gpm, head 85 m’
- Electrical Characteristics; 380 Volt, 3 Ph, 50 Hz

Lightning System: Non Conventional, Early Streamer Emission - Electrostatic type
Telecommunication System: PABX - 100 Direct Lines, 1500 Extention to PT. Telkom
Fire Alarm System: Semi Addressable System, 2 Loops – 450 points
Sound System: Back Ground Music (BGM), Paging and Car Call System
Security System: CCTV System
