PT.MALMASS MITRA TEKNIK PROJECT

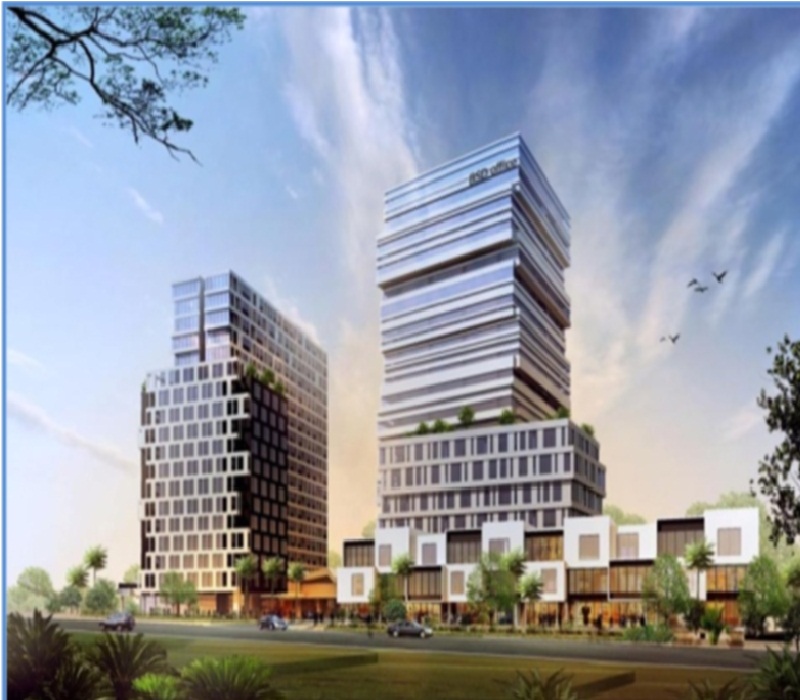

INTERMAK BSD

Location : Tangerang Selatan

Project Data :
Owner : KSO Merdeka Ronov Indonesia
Architect : PT. Guci Tirta Design
Site Area : 10.663 m²
Building Area : 42.302 m²
Total Building : 3 Tower
Total Floor :  Apartemen 20 floor, Hotel  13 floor, Office 18 floor + 3 Basement
Function Building : Office, Hotel & Apartemen
Year : 2012

MEP System :
ACMV System : AC Split Duct System

Plumbing System :
- Clean Water,Waste Water, Ventilation and Rain Water. Etc
- Ground Water Tank (GWT) cap. 450 m3 (Source, PDAM and Deep Well)
- Top Reservoir cap. 2 x 30 m3
- STP cap. 750 m3/day, Aeration System

Fire Fighting System :
- Fire Hydrant and Sprinkler System
- Electric Hydrant Pump (EHP) 1.000 us gpm, head 150 m’
- Electrical Characteristic : 380 Volt, 3 Ph, 50 Hz.
- Lift / Elevator : 3 unit Passengers Lift, 1 unit service lift

Electrical System :
- Electrical Load : PLN 1.600 kVA (Source : PLN & Genset)
- Transformers Oil type : 1 x 1.600 kVA, 20 kV – 380 Volt
- Diesel Generator Set, 2 x 1000 kVA Synchronized, Prime Power.

Lightning System : Non Conventional, Early Streamer Emission – Electrostatic type.
Telecommunication System : PABX-600 line outlets
Fire Alarm System : Full Addressable System,
Sound System : Public Address / Paging, Back Ground Music (BGM),  and Car Call
Security System : CCTV System
Ancillary : Building Automation System (BAS)
