PT.MALMASS MITRA TEKNIK PROJECT

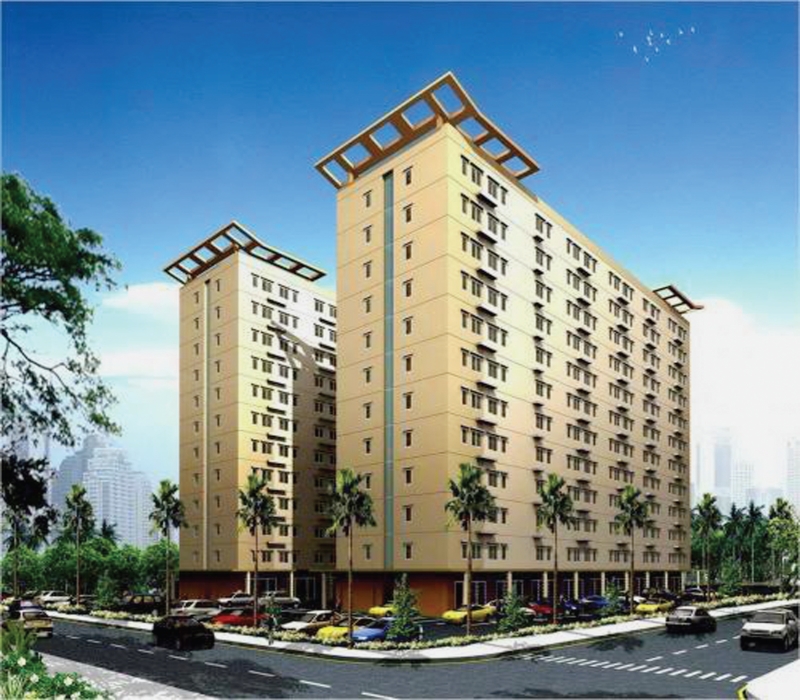

GADING NIAS RESIDENCE
Location: Jalan Pegangsaan II - Kelapa Gading, North Jakarta
PROJECT DATA:
Owner: PT. TIARA METROPOLITAN JAYA
Architect: PT. Megatika International
Site Area: ± 62.585,91 m²
Building Area: 62.429,99 m²
Total Building: 4 Tower
Total Floor: 54 Storey
Function Building: Apartment
Year: 2008
MEP SYSTEM:
ACMV System: AC Split Wall Mounted and Mechanical Ventilation System
Plumbing System:
- Clean water, Waste water, Ventilation and Rain Water, etc
- GWT cap.800 m³(Tower-A&D), cap.430 m³(Tower-B), cap.450 m³ (Tower-C) and 800 m³ (Tower-E).
- STP cap.1.400 m³/day for Tower-A,B,C,D and E, Aeration system
- Top Reservoir cap.200 m³ Tower-A&D, cap.100 m³ Tower-B, cap.150 m³ Tower-C, cap.200 m³ Tower-E, Modular type
Fire Fighting System:
- Hydrant and Sprinkler system
- Electric Hydrant Pump (EHP) 1.250 us gpm, head 185 m’
- Electrical Characteristicts; 380 Volt, 3 Ph, 50 Hz
Lift/Elevator System:
- Tower-A & D 4 Unit Lift Passengers, 15 persons/1500kg, 110 mpm 2 Unit Lift Service
- Tower-B 4 Unit Lift Passengers, 15 persons/1500kg, 110 mpm 1 Unit Lift Service
- Tower-C 3 Unit Lift Passengers, 15 persons/1500kg, 110 mpm 1 Unit Lift Service
- Tower-E 4 Unit Lift Passengers, 15 persons/1500kg, 110 mpm 2 Unit Lift Service.
Electrical System:
- Electrical Load; (Source; PLN & Genset)
- Tower A-D = 1.165,7 kVA, Tower-B = 442.5 kVA,
- Tower-C =.667.4 kVA, Tower-E = 968.9 kVA
- Transformers Oil type, 1 x 1.250 kVA + 1 x 630, TM 20 kV – 380 V
- Transformers Oil type, 1 x 630 kVA + 1 x 1.000 kVA, TM 20 kV – 380 V
- Diesel Generator Set, 2 x 1.000 kVA Synchronized, Prime power type
Lightning System: Non Conventional, Early Streamer Emission - Electrostatic type
Telecommunication System:
- Tower-A & D = 1.950 SST, Tower-B = 750 SST,
- Tower-C = 1.100 SST and Tower-E = 2.100 SST, PT.Telkom
Fire Alarm System: Semi Addressable System, 8 Loops – 1800 points
Sound System: Outlets MATV for each housing (typical), Evacuation System
Security System: CCTV System and Access Card System
